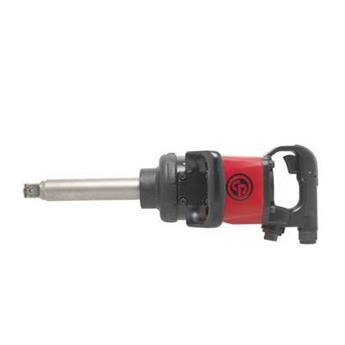

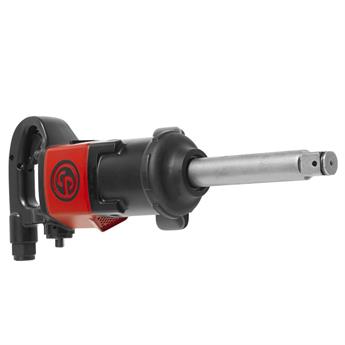

CP 7783-6
Mutterdragare 1" med 6" förlängning
- Artnr: 8941077836
- Vikt, kg: 9,5
- Enhet: st
Beskrivning av artikel
CP 7783-6 Mutterdragare 1" med 6" förlängnng
Leverans: Normalt 3-5 arbetsdagar
Benefits
Powerful
Lightweight
SUPER Durability
Operator Comfort & Easy to Use
User Friendly
Convenient
Useful
Shock Absorbing
Features
1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
18.5 lbs. / 8.4 kg for reduced operator fatigue
Pinless closed reinforced rocking dog mechanism in oil bath
Features an adjustable top or down exhaust
Regulator integrated in forward/reverse button with 3 power settings in both directions
Top or down exhaust, easy and quick to change
Four positions for D-handle placement to provide ultimate operator comfort
Forward/Reverse regulator with 3 power settings in both directions
Rubber bumper protecting both applications & tool (included)
Teknisk data
| Model | CP7783-6 | |
| Part number | 8941077836 | |
| Actual air consumption | 19 l/s | |
| Air inlet thread size | 3/8" | |
| Average air consumption | 4.75 l/s | |
| Clutch type | Pin less closed rocking dog | |
| Free speed | 6200 rpm | |
| Handle type | D-Handle Inside Trigger | |
| Length | 500 mm | |
| Maximum Torque (reverse) | 2400 Nm | |
| Min. hose size | 19 mm | |
| Net weight | 9.5 kg | |
| Socket retainer | Ring & hole | |
| Sound Power | 113 db(A) | |
| Sound pressure | 102 db(A) | |
| Square drive | 1" | |
| Vibration | 15.1 m/s² | |
| Vibration uncertainty (K) | 4.1 m/s² | |
| Vibration-ISO | ISO-28927-2 | |
| Working Torque Range (fwd) | 560 - 1700 Nm |
