Mutterdragare 1"

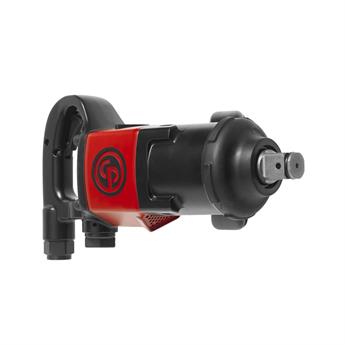

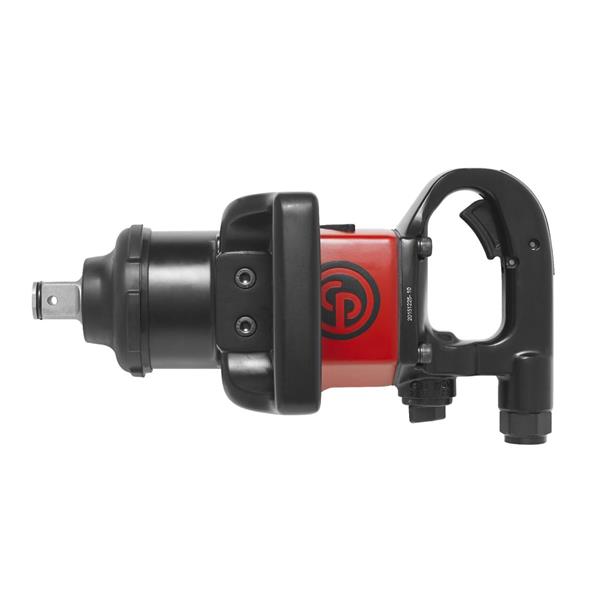

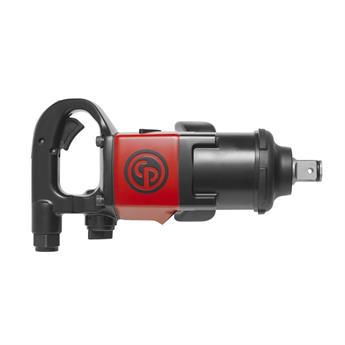

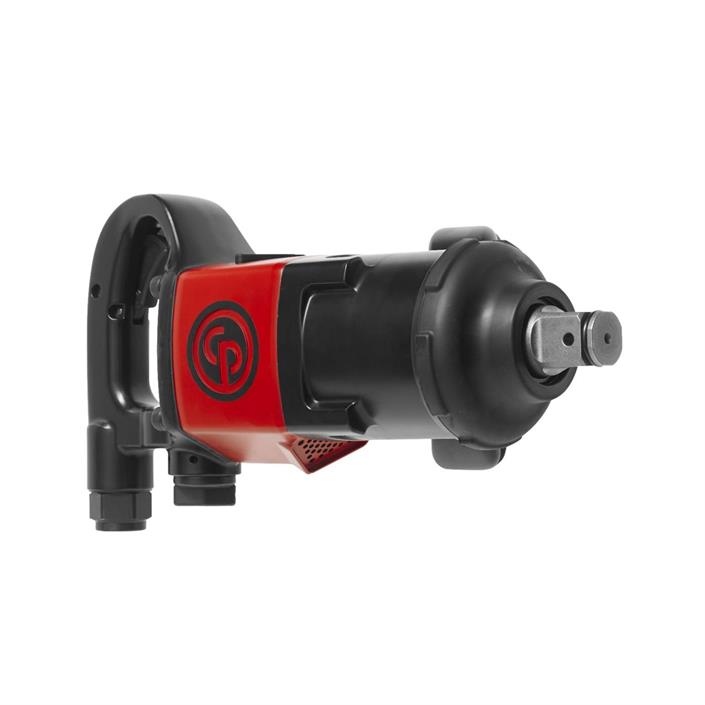

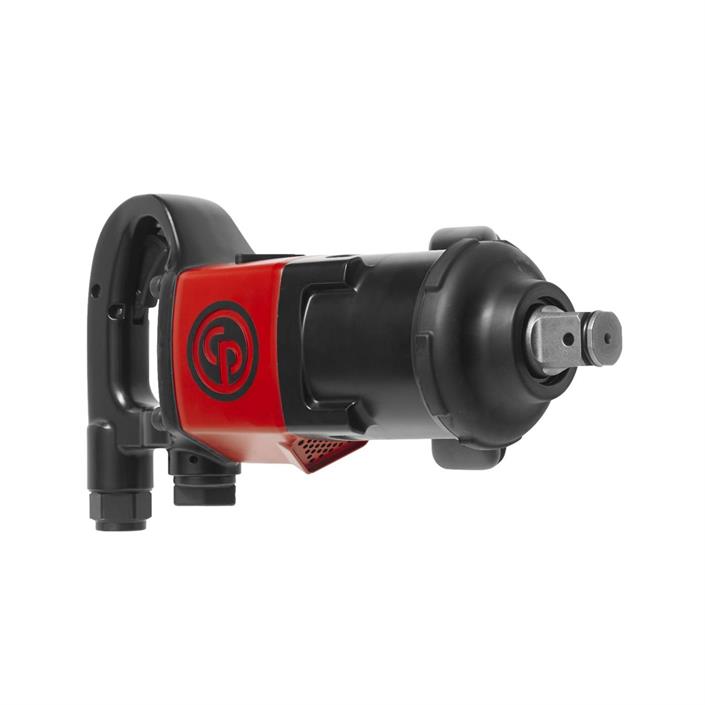

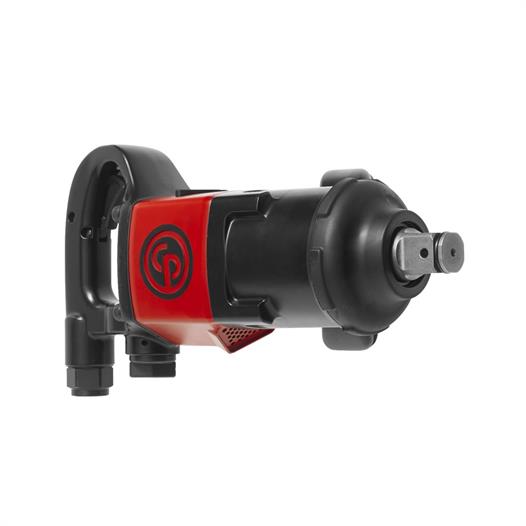

CP 7783 1" mutterdragare
Leverans: Normalt 3-5 arbetsdagar Video
Benefits
Powerful
Lightweight
SUPER Durability
Operator Comfort & Easy to Use
User Friendly
Convenient
Useful
Shock Absorbing
Features
1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
18.5 lbs. / 8.4 kg for reduced operator fatigue
Pinless closed reinforced rocking dog mechanism in oil bath
Features an adjustable top or down exhaust
Regulator integrated in forward/reverse button with 3 power settings in both directions
Top or down exhaust, easy and quick to change
Four positions for D-handle placement to provide ultimate operator comfort
Forward/Reverse regulator with 3 power settings in both directions
Rubber bumper protecting both applications & tool (included)
Teknisk information
Model | CP7783 | |
Part number | 8941077830 | |
Actual air consumption | 19 l/s | |
Air inlet thread size | 3/8" | |
Average air consumption | 4.75 l/s | |
Blows per minute | ||
Clutch type | Pin less closed rocking dog | |
Free speed | 6200 rpm | |
Handle type | D-Handle Inside Trigger | |
Length | 350 mm | |
Maximum Torque (reverse) | 2400 Nm | |
Min. hose size | 19 mm | |
Net weight | 8.4 kg | |
Power/weight ratio | Nm/kg | |
Side to center | mm | |
Socket retainer | Ring & hole | |
Sound Power | 113 db(A) | |
Sound pressure | 102 db(A) | |
Square drive | 1" | |
Vibration | 15.1 m/s² | |
Vibration uncertainty (K) | 4.1 m/s² | |
Vibration-ISO | ISO-28927-2 | |
Working Torque Range (fwd) | 560 - 1700 Nm |
