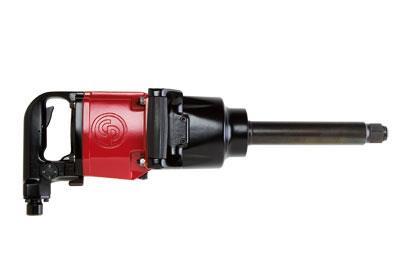

CP 5000
Mutterdragar 1"
- Artnr: T024585
- Vikt, kg: 16,2
- Enhet: st
Beskrivning av artikel
Mutterdragare CP 5000 3390Nm
Leverans: Normalt 3-5 arbetsdagar
Benefits:
- Strongest and most powerful 1" impact with an extended anvil
- Superior operator productivity and control thanks to great ergonomics even at high levels of torque
- Convenient reverse valve for ease of use
- Ideal for high volume tire work on trucks, buses, and heavy equipment
Features:
- Super Industrial 1" impact wrench
- Rocking dog clutch
- 4-position power settings throttle for ease of use
- Convenient reverse valve
- Plus 7" extended anvil
| Part number | T024585 | |
| Model | CP5000 | |
| Handle type | D-Handle Inside Trigger | |
| Square drive | 1" | |
| Working Torque Range (fwd) | 240-2,800 Nm | |
| Maximum Torque (reverse) | 3390 Nm | |
| Free speed | 3700 rpm | |
| Blows per minute | 540 | |
| Net weight | 16.2 kg | |
| Power/weight ratio | 209.3 Nm/kg | |
| Length | 572 mm | |
| Average air consumption | 5.6 l/s | |
| Actual air consumption | 25 l/s | |
| Air inlet thread size | 1/2" NPTF | |
| Min. hose size | 1/2" | 13 mm |
| Sound pressure | 103 db(A) | |
| Sound Power | 114 db(A) | |
| Vibration (ISO-8662-7) | 8.9 m/s² | |
| Vibration α (ISO-28927-2) | 8.5 m/s² | |
| Vibration K (ISO-28927-2) | 2.6 m/s² | |
| Socket retainer | Dual (hole+friction) | |
| Clutch type | Pinless rocking dog | |
| Box dimensions | 680x240x170 | |
