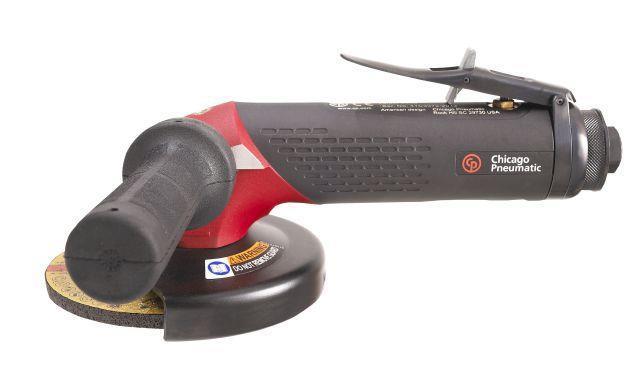

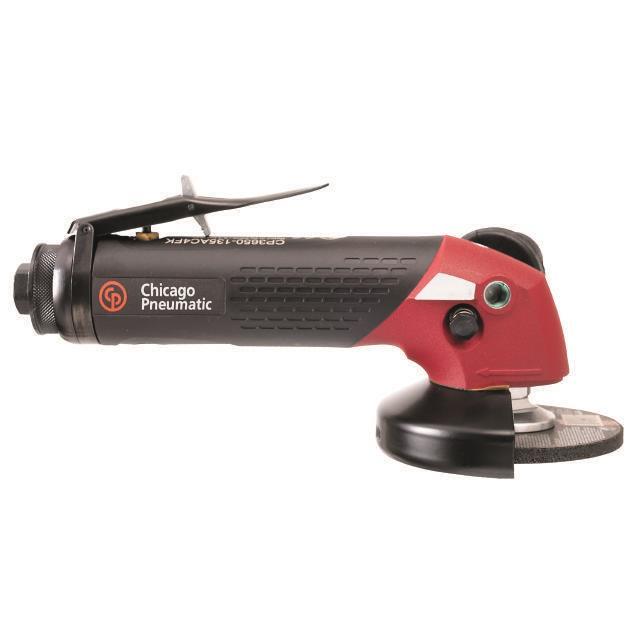

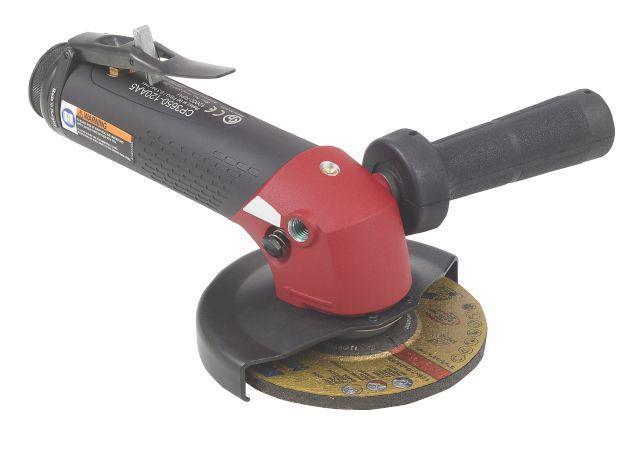

CP 3650

Vinkelslip 125mm vibrationsdämpad

  • Artnr: 6151607180
  • Vikt, kg: 1,8
  • Enhet: st

Beskrivning av artikel

Chicago Pneumatic

CP 3650-120AA5VK                     Leverans: Normalt 2-5 arbetsdagar

Part number 6151607210
Model CP3650-120AA5
Spindle thread M14
Wheel size 125 mm 5"
Free speed 12000 rpm
Power 1700 W 2.3 hp
Length 238 mm 9.37"
Net weight 1,77  3,9
Side to center 26.8 mm 1.05"
Height over spindle 87.3 mm 3.43"
Sound pressure 82 db(A)
Sound Power 93 db(A)
Vibration α (ISO-28927-1) 7.1 m/s²
Vibration K (ISO-28927-1) 2.2 m/s²
Actual air consumption 32 l/s 68 cfm
Free speed air consumption 20 l/s 42 cfm
Min. hose size 13 mm 1/2"
Air inlet thread size 3/8
Box dimensions 355x175x165
