CP-T10
Hydraulisk momentdragare 1 1/2"
- Artnr: 6151550050
- Vikt, kg: 13,6
- Enhet: st
Beskrivning av artikel

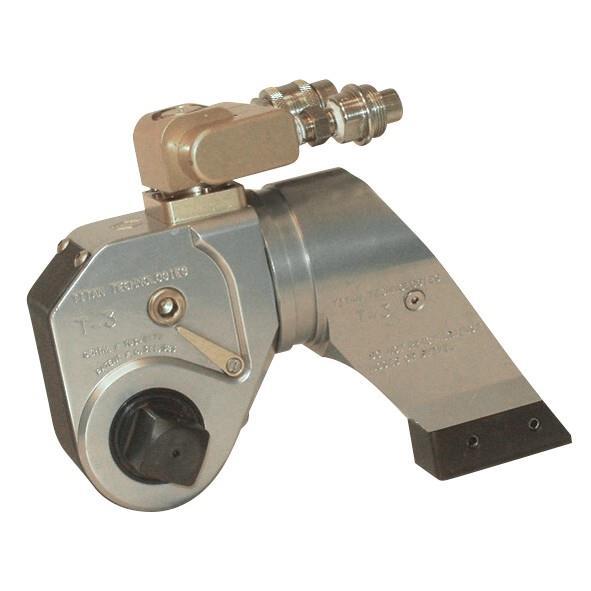

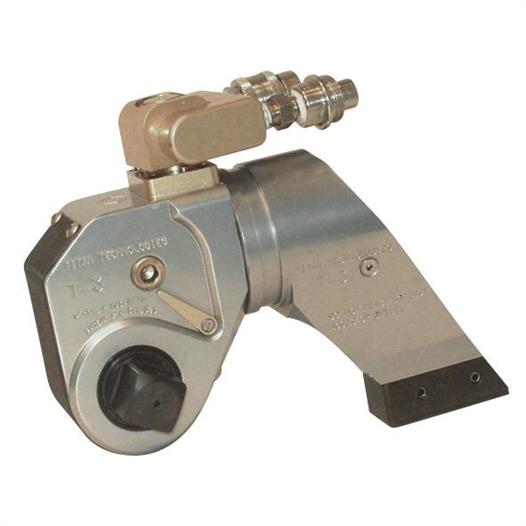

CP-T10 Hydraulisk momentdragare 1 1/2"
Leverans: Normalt 3-5 arbetsdagar
Kontakta oss för pris
Benefits
Patented Multi Axis Tru-Swivel
360° Rotating reaction arm
Excellent power to weight ratio
Corrosion resistance
Features
Certified torque accuracy of +/-3%
Robust ratchet mechanism assures High repeatability
Crafted from the highest quality aircraft-grade materials for ultimate strength and durability (AQ Grade 7075-T6 Light Alloy)
Titan Piston system eliminates piston and cylinder damage due to over-stroke
Hard coat anodized finish
Unique single-piece drive pawl design for ultimate accuracy and longevity
Components manufactured to ISO 9001/AS9100C:2009 standards
Teknisk data
| Model | T10 | |
| Part number | 6151550050 | |
| Optional Square Drive Sizes | 1 & 2 1/2 " | |
| Range Optional Hex Drives Sizes | 32 51 mm | |
| Square drive | 1 1/2 " | |
| Torque range | 2254 14049 Nm | |
| Vibration-ISO | ISO- | |
| Weight | 13.61 kg |
