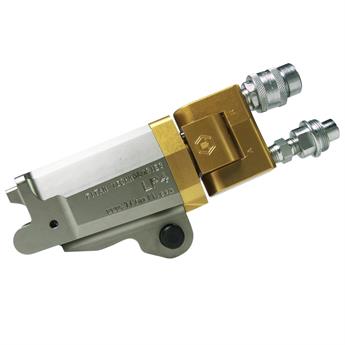

CP-LP4
Hydrauliskt cylinderhuvud 25 - 80mm
- Artnr: 6151550190
- Vikt, kg: 2,6
- Enhet: st
Beskrivning av artikel
CP-LP4 Hydrauliskt cylinderhuvud 25 - 80mm
Låg profil
Leverans: Normalt 3-5 arbetsdagar
Kontakta oss för pris
Benefits
Patented Multi Axis Thru-Swivel prevents hose kinking and provides for ease of operation
Flat design : easy fit on the tightest bolt patterns
Unique Wide-Track ratchet teeth
Modular concept
Features
Certified torque accuracy of +/- 3%
The Titan WIDE TRACK ratchet tooth design distributes stress evenly , which provides a bigger contact area that deliver the strength to get the job done right every time
Crafted from the highest quality aircraft-grade material for ultimate strengh and durability (Aisi 4340 alloy steel)
Low nose and flat design for extremely tight application accessibility
Extremely versatile and light-weight
Teknisk data
| Model | LP4 | |
| Part number | 6151550190 | |
| Cylinder Weight | 2.63 kg | |
| Range of Hex Sizes A/F | 25 - 80 mm | |
| Torque range | 683 - 4680 Nm |
