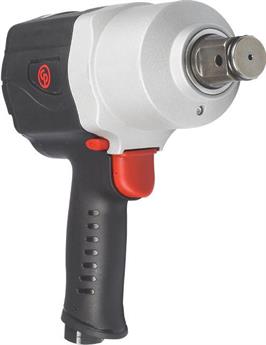

CP 7769

Mutterdragare 1"

  • Artnr: 8941077690
  • Vikt, kg: 3,4
  • Enhet: st

Beskrivning av artikel

CP 7769 Mutterdragare 3/4"

Leverans: Normalt 2-5 arbetsdagar


Powerful impact for General Maintenance
Maximize operator comfort: lightweight and balanced design
Energy savings: low air consumption


3/4" composite impact wrench with dual retainer (hole + ring)
1,440 ft.lbs (1,950Nm) of maximum torque in reverse
Low consumption air motor at 31 cfm (14.7 l/s)
Insulating and lightweight composite handle
S2S easy forward reverse
Full teasing developed trigger

Teknisk data

Model CP7769
Part number 8941077690
Actual air consumption 14.7 l/s
Air inlet thread size 3/8 "
Average air consumption 3.7 l/s
Blows per minute 1200
Box dimensions 253*253*117 mm
Clutch type Twin hammer
Free speed 7000 rpm
Handle type Pistol
Length 214 mm
Maximum Torque (reverse) 1950 Nm
Min. hose size 13 mm
Net weight 3.4 kg
Over carton 260*260*480 mm
Power/weight ratio 573.5 Nm/kg
Side to center 39 mm
Socket retainer Dual (hole+friction)
Sound Power 108 db(A)
Sound pressure 97 db(A)
Square drive 3/4 "
Vibration 12.6 m/s²
Vibration uncertainty (K) 3.4 m/s²
Vibration-ISO ISO-28927-2
Working Torque Range (fwd) 4071,464 Nm
